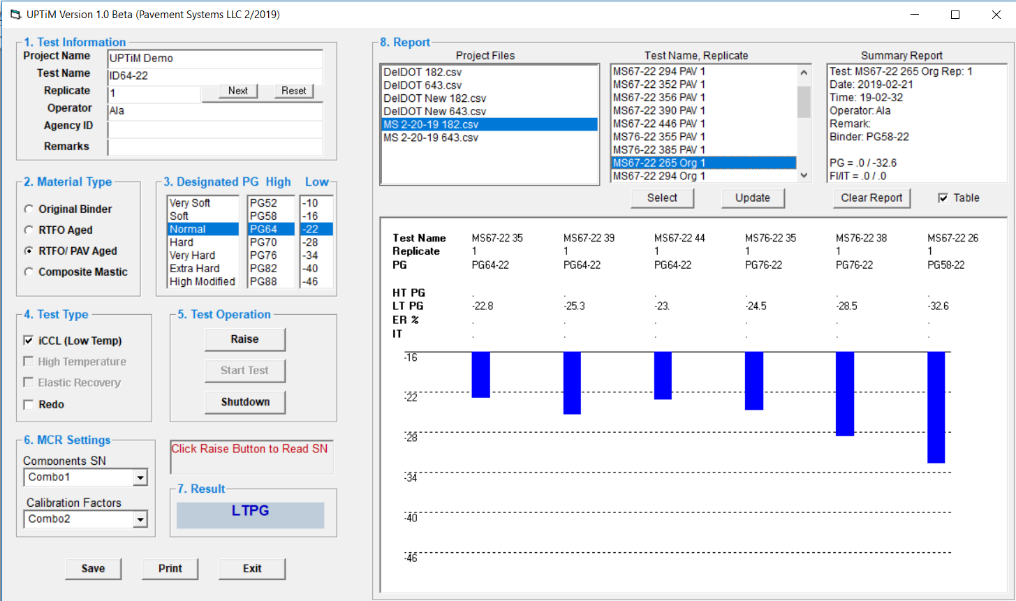

UPTiM Software

UPTiM is a user-friendly, fully automated system for testing original and PAV asphalt, extracted binders, and composite mastic. It performs precise low-, intermediate-, and high-temperature analyses to deliver a complete performance profile. Built-in tools provide clear data visualization, generating detailed reports and graphs for fast, accurate results.

UPTiM Testing System

This system combines a mechanical ball-bearing-based Modular Compact Rheometer (MCR 72) with the intuitive RheoCompass platform and the proprietary UPTiM software developed by Pavement Systems, LLC. Together, they deliver quick and reliable measurements of low- and high-temperature PG properties, as well as intermediate-temperature fatigue characteristics of liquid binders and composite mastics.

UPTiM Setup

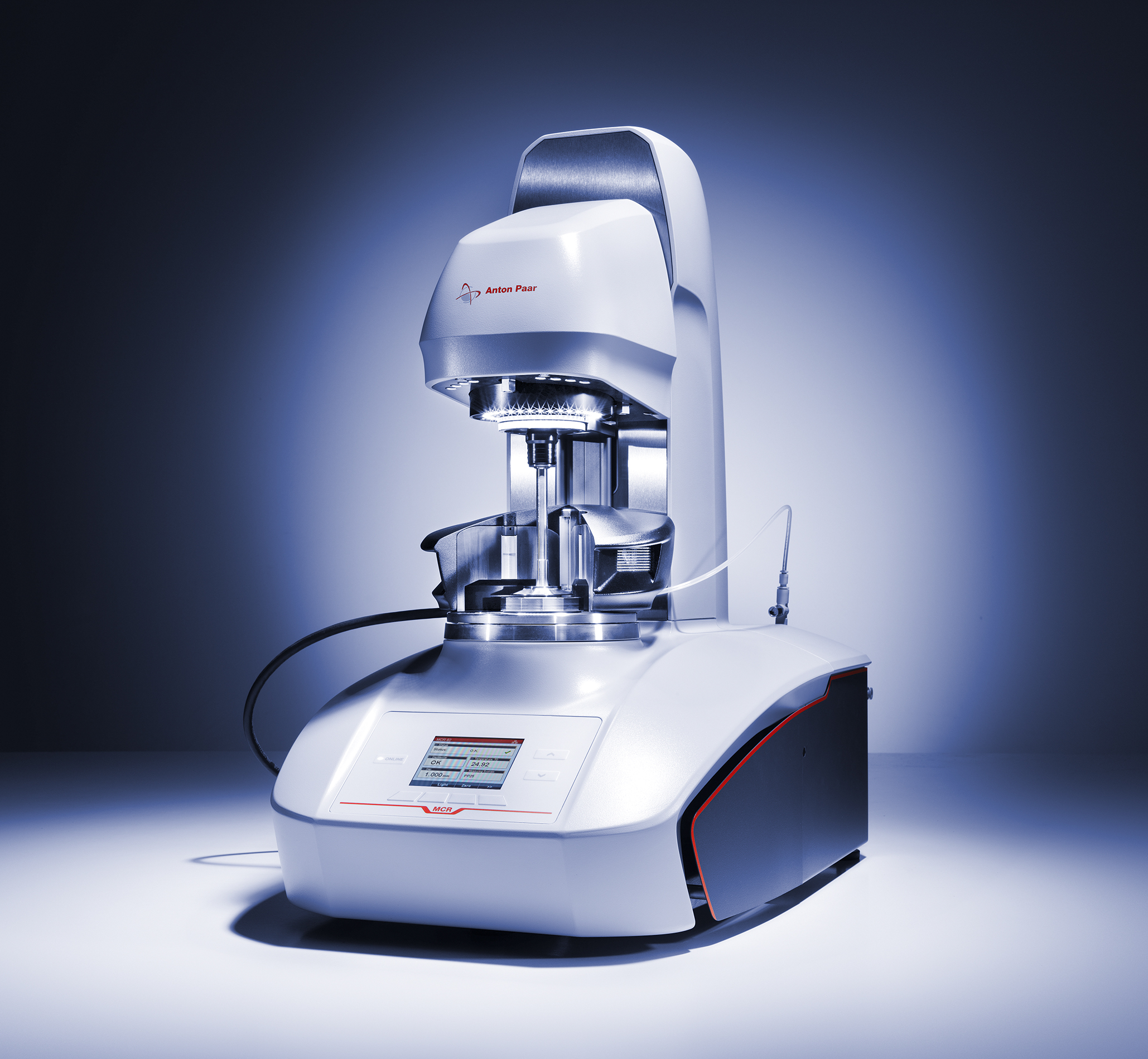

• Rheometer:  Modular Compact Rheometer MCR 72
• Accessories: Peltier controlled lower plate (P-PTD200/AIR/18P) and active Peltier controlled hood (H-PTD 200/AIR/18P)
• Measuring geometry: Parallel plate PP08 (Ø 8 mm)
• Temperature Calibration Set according to AASHTO T315
• RheoCompass software (from Anton Paar)
• UPTiM software (from Pavement Systems, LLC)

UPTiM Software Requirements

• RheoCompass software (from Anton Paar)
• Internet connection
